Digitek 27MBTSG 3 Phase Temporary Meter Box

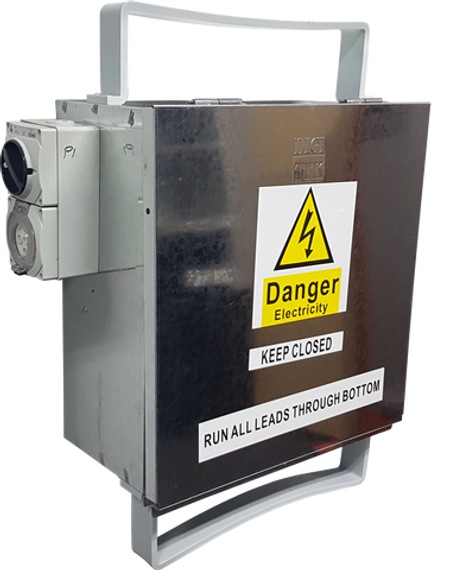

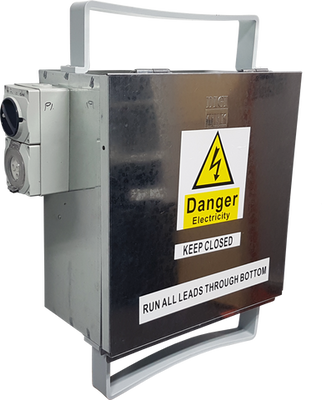

Note:  Picture is Indicative Only.  New Model is Supplied in High Vis Yellow with Green Stand

27MBTSG 3 Phase Temporary Meter Box

Features:

• 3 Phase Temporary Meter Box (Box and Stand)
• Assembled Dimensions: 1875mm x 520mm x 610mm (H x W x D) - Plus External 3 Phase Socket
• Enclosure Dimensions: 502mm x 505mm x 230mm (H x W x D)
• Construction: 1.2mm Galvanised Steel Sheets AS1397 Standard
• Construction Features: Riveted Hinges and Tabs
• Construction Features: Corrosive Resistant Paint Applied to All Welds
• Construction Features: UV Stabilised Powder Coated Green Stand and Gold Enclosure
• Construction Features: Cable Restraint Isolated Tie Rods (Top & Bottom)
• Door: Removeable.  Top Hinged.
• Door Support: Switchable Arm.  Left/Right
• IP Rating: IP23 Rated AS1939
• Grounding Point: Earth Stud M5 x 20
• Security: Single Padlock Locking Point (Padlock Not Included)
• Packaging: Protective Cardboard Box

Included Accessories:

• Meter Box and Stand
• Pre-installed Insulating Panel (AS1795/IEC60893)
• 3 Phase, 100 Amp Main Switch
• 5 Pin, 32 Amp Externally Mounted 3 Phase Socket
• 3 Phase 4 Pole Combo RCBO (32 Amp Breaker & 30mA RCD)
• 5 x 10 Amp Double Power Points with Active and Neutral Switching
• 1 x 15 Amp Power Point
• Lockable Loom Box (Lock Included)

Notes:

• Fully Wired and Tested in Australia by Licensed Electricians with Locally Sourced SAA Approved Parts

Packaging:

• 2 Piece Kit. Each in a Protective Cardboard Box
