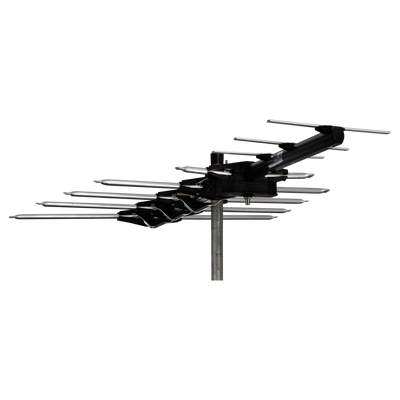

Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
Digitek LTE Series 12 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
Features:
- F-Type Balun with LTE Low Pass Filter
- Snap out reflectors
- Stainless Steel screws on connection points
- Designed and tested in Australia for Australian Conditions
- Heavy Duty construction on all components
- 12mm extruded aluminium heavy duty elements
- Tough powder coated finish
- UV stabilised plastics
- Bifurcated rivets - Strongest in the industry
- U-bolts & Clamps fitted
- Foxtel Approved IPL # F31169
Number of Elements: 12
Band: 3/4 (VHF/UHF)
VHF Channels: 6 - 12
VHF Forward Gain: 11dB
VHF Front to Back Ratio: >11dB
UHF Channels: 28 - 35
UHF Forward Gain: 4dB
UHF Front to Back Ratio: >23dB
Assembled Dimensions
Length: 1060mm
Width: 710mm
Height: 80mm
Weight 1.48kg
Band: 3/4 (VHF/UHF)
VHF Channels: 6 - 12
VHF Forward Gain: 11dB
VHF Front to Back Ratio: >11dB
UHF Channels: 28 - 35
UHF Forward Gain: 4dB
UHF Front to Back Ratio: >23dB
Assembled Dimensions
Length: 1060mm
Width: 710mm
Height: 80mm
Weight 1.48kg
- Product Information Sheet:
- Download
- Antenna Type:
- YAGI
