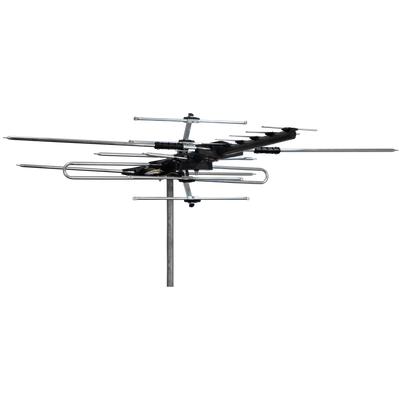

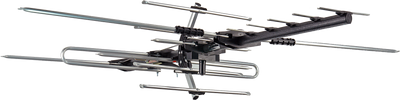

Digitek LTE Series 14 Element Outer Metropolitan Premium YAGI UHF/VHF Combination Antenna
Digitek LTE Series 14 Element Metropolitan Premium YAGI UHF/VHF Combination Antenna
Features:
- F-Type Balun with LTE Low Pass Filter
- Snap out reflectors
- Stainless Steel screws on connection points
- Designed and tested in Australia for Australian Conditions
- Heavy Duty construction on all components
- 12mm extruded aluminium heavy duty elements
- Tough powder coated finish
- UV stabilised plastics
- Bifurcated rivets - Strongest in the industry
- U-bolts & Clamps fitted
Number of Elements: 14
Band: 3/4/5 (VHF/UHF)
VHF Channels: 6 - 12
VHF Forward Gain: 12.5dB
VHF Front to Back Ratio: >16dB
UHF Channels: 28 - 51
UHF Forward Gain: 11dB
UHF Front to Back Ratio: >16dB
Assembled Dimensions
Length: 1240mm
Width: 1318mm
Height: 340mm
Weight 1.87kg
Band: 3/4/5 (VHF/UHF)
VHF Channels: 6 - 12
VHF Forward Gain: 12.5dB
VHF Front to Back Ratio: >16dB
UHF Channels: 28 - 51
UHF Forward Gain: 11dB
UHF Front to Back Ratio: >16dB
Assembled Dimensions
Length: 1240mm
Width: 1318mm
Height: 340mm
Weight 1.87kg
- Product Information Sheet:
- Download
- Antenna Type:
- YAGI
