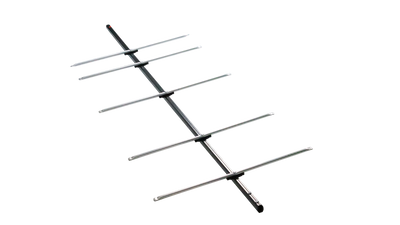

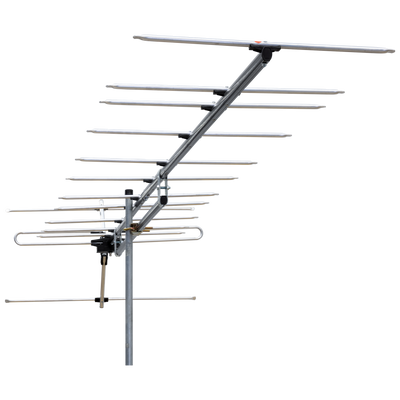

Digitek LTE Series 14 Element Outer Fringe Premium YAGI VHF Antenna
Digitek LTE Series 14 Element Outer Fringe Premium YAGI VHF Antenna
Features:
- F-Type Balun with LTE Low Pass Filter
- Snap out reflectors
- Stainless Steel screws on connection points
- Heavy Duty construction on all components
- Designed & engineered in Australia for Australianconditions & Australian digital television transmissions
- 12mm extruded aluminium heavy-duty elements
- Tough powder coated finish
- UV stabilised plastics
- Bifurcated rivets - Strongest in the industry
- Horizontal and vertical mounting options
- U-bolts & Clamps fitted

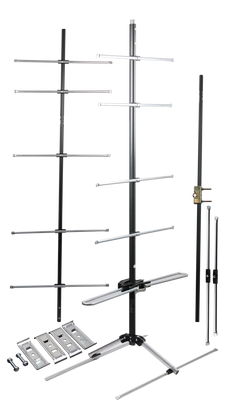

- Complete with extra support boom
Number of Elements: 14
Band: 3 (VHF)
VHF Channels: 6 - 12
Forward Gain: >17.5dB
Front to Back Ratio: 30dBi
Assembled Dimensions
Length: 3430mm
Width: 1318mm
Height: 600mm
Weight 3.27kg
Band: 3 (VHF)
VHF Channels: 6 - 12
Forward Gain: >17.5dB
Front to Back Ratio: 30dBi
Assembled Dimensions
Length: 3430mm
Width: 1318mm
Height: 600mm
Weight 3.27kg
